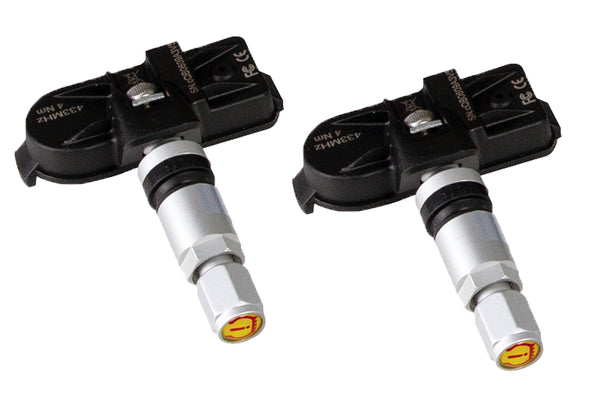

They use a built-in battery which has an average life span of about 3 years.
Both sensors have a working range of 0-110 psi and can trigger a DTC if it detects too high or too low of a pressure. They also can warn you if tyre temperature gets too high.
- SUITS: Haltech Nexus and Elite ECU's using NSP and ESP Software

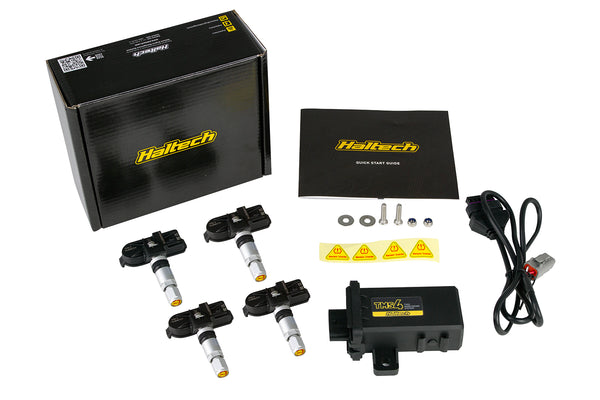

- INCLUDES: 1 x Haltech TMS-4 Reciever 1 x TE Mcon to DTM-4 CAN Cable 4 x Internal Sensors Warning Sticker Set Mounting Hardware Quick Start Guide
- NOTES: Batteries for internal sensors are included and are NOT replaceable Typical lifespan of battery is 3years
How does it all work?

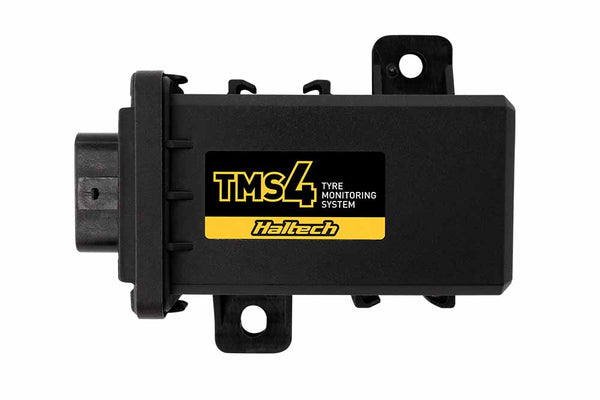

The TMS-4 receiver takes in the signal from each of the four tyre pressure sensors and sends it to your Haltech ECU through the CAN cable (included in each kit).
Connecting the receiver is a simple matter of plugging the 6 pin connector into the rear of the receiver and connecting the DTM connector into your Haltech CAN network.
They will display as separate tyre channels in the ESP software and can be re-assigned to any wheel if you need to rotate tyres or swap wheels. The sensors can also be turned off in the software if you do not want to monitor a specific wheel.
NOTE: To use the TMS-4 on any of our Elite series ECUs you will need to upgrade to at least 2.37 firmware and be using ESP software version 2.45 or later. Both of these are now released and available from our DOWNLOADS page.
The latest firmware and software update for the iC-7 allows you to monitor these tyre temperature and pressure channels on your iC-7 display dash.
